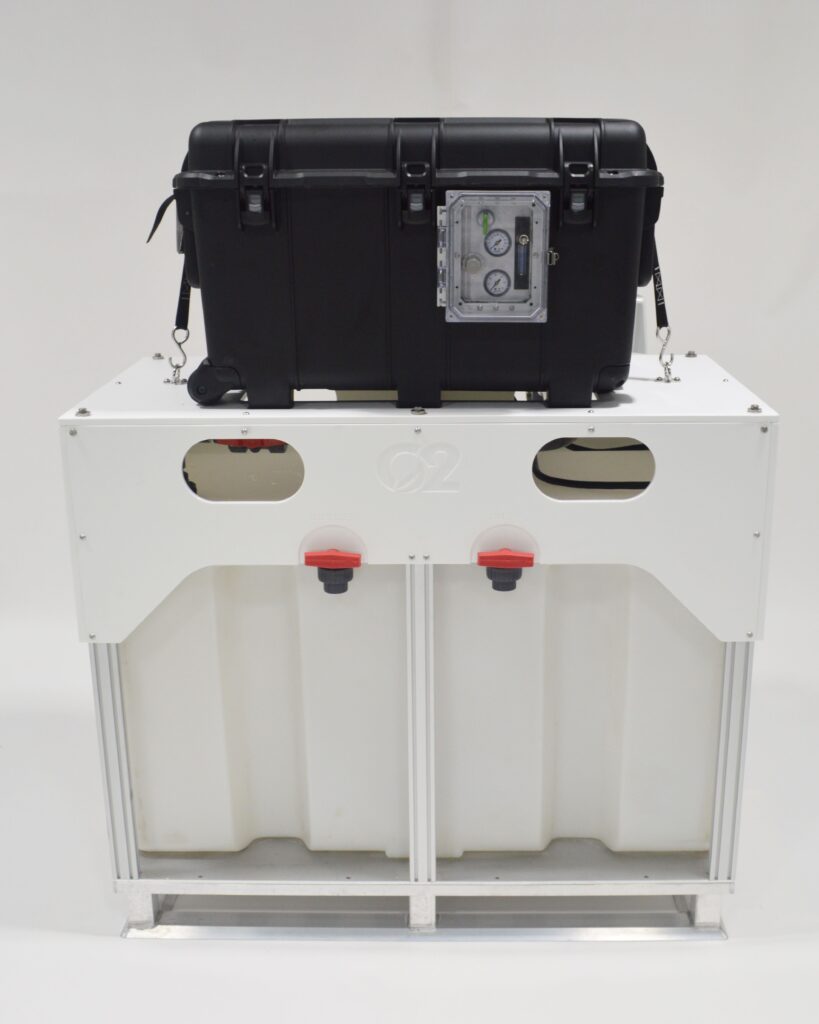

A-100 Platform
More Videos are available in the Video Tab Below
The A-100 platform is a purpose-built oxygen delivery platform engineered specifically for commercial greenhouse operations. Designed to integrate seamlessly into existing irrigation, fertigation, and water management systems, the A-100 provides a scalable, low-pressure oxygenation solution that enhances overall water quality and biological performance within greenhouse production environments.
Engineered for commercial reliability, the A-100 platform delivers these benefits while maintaining low energy consumption, minimal maintenance requirements, and dependable continuous operation, making it an ideal solution for modern greenhouse production systems.
Price Coming Soon
*Buy 4 for $XXXX each and save 5%
*Buy 6 for $XXXX each and save 10%
*Buy 10 for $XXXX each and save 15%
A-100 Platform
The A-100 Platform is engineered to maximize oxygen transfer efficiency through high-flow, low-pressure operation and seamless integration with water systems, enabling elevated dissolved oxygen levels, improved process performance, and reduced energy consumption. By increasing dissolved oxygen availability and gas transfer efficiency, the A-100 improves the effectiveness of applied inputs, including nutrients, biological products, and crop protection materials. Elevated oxygen levels support stronger microbial activity within the irrigation water and root zone, promoting improved nutrient utilization efficiency, healthier root development, and more consistent plant growth. The result is a more biologically active and stable production system that supports improved crop health, growth performance, and yield potential.
A-100 Platform
- Unique Patent Pending Design – Full Self-Contained Oxygen Nanobubble System
- Outdoor Rated Oxygen Concentrator supplies 90-93% O2 at 10 LPM 20 psi
- Patent Pending Custom Class 2 Dryer System allows for continuous operation
- 1-month of 24/7 operations is equivalent to Qty 255 J Size Bottles
- Built in variable Speed Water Pump – 40-100gpm with 100-gallon Tank
- ¾” Hose Water Inlet and Outlet with internal Float valve.
- Full Stainless Steel 316L Construction NBG
- Easy to remove Dual Titanium 100 nm Injectors
- Proven nanobubble production in excess of 400 million/ml
- Average size of 100nm-sized bubbles
- Low Noise / Quiet Operation with Low Power Usage – Standard Plug
- Wash Down Capable + Corrosion Resistant Components
- Outdoor rated System designed to operate Rain or Shine
- Low Power Usage – Standard Plug
- Wash Down Capable + Corrosion Resistant Components
- Capable of Continuous or Timer Controlled Operations
- Low Noise / Quiet Operation
- Simple Control Panel protected by Clear Polycarbonate Cover.
- Integrated Pressure Gauges, Pressure Regulators and Adjustable Flow Meter 0-10 LPM.
- Exterior Dimensions: 48” x 40” x 62”
A-100 Platform
- Q: Can I remove the push to connect fittings and install a bard fitting or a flare fitting?
- A: Absolutely, titanium diffusers have a standard ¼” npt thread which will allow you to install any fitting of your choice with a matching thread. We recommend you use a soft jaw plier and only grip on the upper part of the diffuser where the O-ring is located. Remove the O-rings as required.
- Q: If I drop this diffuser on the ground, will it crack like ceramic units do?
- A: No, O2 Tech built these gas injectors out of titanium to prevent this failure. The material is very robust and can handle drops off tables, ladders and tanks. O2 Techs goal was to make these injectors last years.
- Q: Do diffusers require cleaning or maintenance?
- A: Over time, diffusers can accumulate organic buildup, which may reduce performance. Regular maintenance helps ensure optimal oxygen transfer and long-term reliability. We recommend keeping a spare set of diffusers on hand for quick change-outs during cleaning. To clean used diffusers, soak them in a bleach solution, chlorine solution, or vinegar to help remove organic material and disinfect the surface. After soaking, flushing or flowing compressed gas through the diffuser will help clear remaining buildup and restore performance.
- Watch our cleaning videos for more information.
- Q: I have very hard water — can diffusers still work effectively?
- A: Yes. Diffusers can operate in hard water environments; however, mineral deposits (such as calcium) may build up over time and reduce performance if not maintained. We recommend keeping a spare set of diffusers available for quick change-outs during routine cleaning. To remove calcium buildup, soak the diffuser in vinegar to dissolve mineral deposits. After soaking, flow compressed gas through the diffuser to help clear any remaining buildup and restore optimal performance.
- Watch our cleaning videos for more information
- Q: I damaged one of my o-rings, how do I replace it.?
- A: Remove the O-ring and purchase a size -016 Buna-N O-ring from your local hardware store. If you cannot find one local, order from McMaster Carr – Part# 9452K6. Reach out to our support team if you need more help. Support@o2nanotech.com
