O2 Mini
More Videos are available in the Video Tab Below

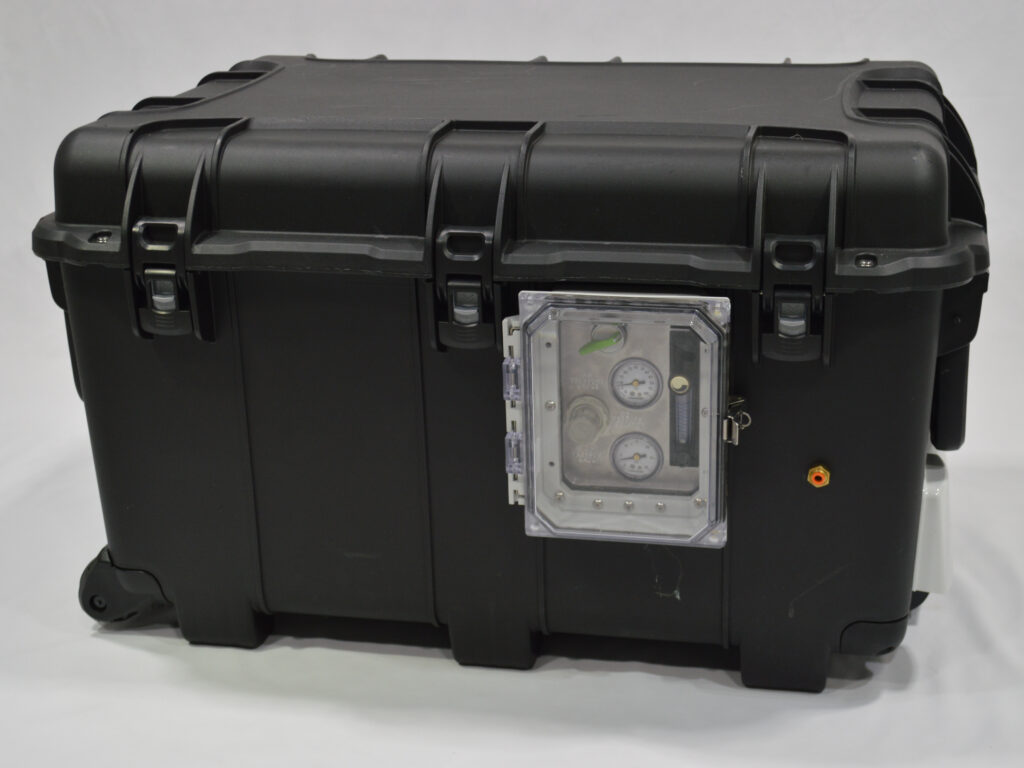

O2 Technologies adds to its industry leading Nanobubble generators and platforms with the introduction of the O2 Mini. The world’s first low power, compact PSA Oxygen concentrator capable of continuous operations indoor or outdoor in high humidity Environments. Design by Aerospace Engineers, this Patent Pending oxygen concentrator allows for 10 LPM at 20 psi in all weather conditions. The robust construction and high-quality materials provide reliable performance that you can count on.
Price Coming Soon
*Buy 4 for $XXXX each and save 5%
*Buy 6 for $XXXX each and save 10%
*Buy 10 for $XXXX each and save 15%
O2 Mini
The O2 Mini are engineered to maximize oxygen transfer efficiency through high-flow, low-pressure operation and seamless integration with water systems, enabling elevated dissolved oxygen levels, improved process performance, and reduced energy consumption. The world’s first low-power, compact PSA oxygen concentrator designed for continuous indoor or outdoor operation, even in high-humidity environments. Designed by aerospace engineers and patent-pending, the O2 Nanobubble Platform & O2 Mini deliver up to 10 LPM at 20 PSI in all weather conditions, providing a dependable on-site oxygen source.
O2 Mini
- Oxygen Concentrator supplies 90-93% O2 at 10 LPM 20 psi
- Patent Pending Custom Class 2 Dryer System allows for continuous operation
- 1-month of 24/7 operations is equivalent to Qty 255 J Size Bottles ~ $25,500 savings
- Outdoor rated System designed to operate Rain or Shine
- Low Power Usage – Standard Plug
- Wash Down Capable + Corrosion Resistant Components
- Ruggedized system designed for Mobile and truck mounted operations
- Capable of Continuous or Timer Controlled Operations
- Low Noise / Quiet Operation
- Simple Control Panel protected by Clear Polycarbonate Cover.
- Integrated Pressure Gauges, Pressure Regulators and Adjustable Flow Meter 0-10 LPM.
- Two-stage retractable handle and four (4) strong polyurethane wheels with stainless steel ball bearings for easy transportation.
- Ultra-strong team carry handles.
- Removeable Power Cord with Water resistant cover.
- Exterior Pump Control (Outlet Plug) up to 9amps.

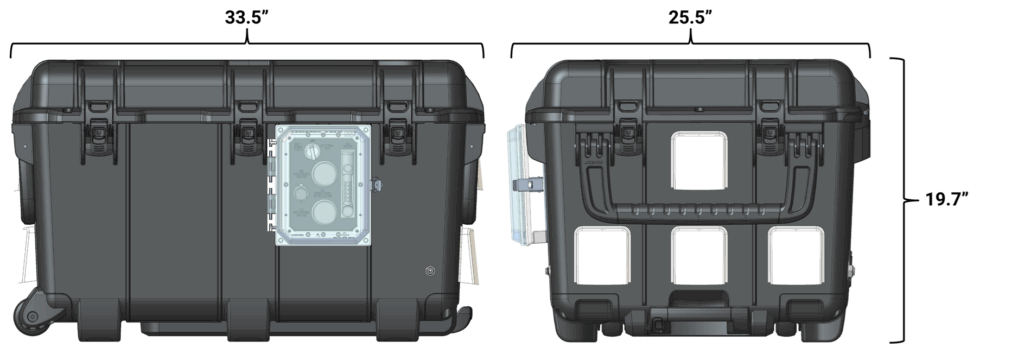

- Exterior Dimensions: 33.5” x 25.5” x 19.7”
O2 Mini
- Q: Can I remove the push to connect fittings and install a bard fitting or a flare fitting?
- A: Absolutely, titanium diffusers have a standard ¼” npt thread which will allow you to install any fitting of your choice with a matching thread. We recommend you use a soft jaw plier and only grip on the upper part of the diffuser where the O-ring is located. Remove the O-rings as required.
- Q: If I drop this diffuser on the ground, will it crack like ceramic units do?
- A: No, O2 Tech built these gas injectors out of titanium to prevent this failure. The material is very robust and can handle drops off tables, ladders and tanks. O2 Techs goal was to make these injectors last years.
- Q: Do diffusers require cleaning or maintenance?
- A: Over time, diffusers can accumulate organic buildup, which may reduce performance. Regular maintenance helps ensure optimal oxygen transfer and long-term reliability. We recommend keeping a spare set of diffusers on hand for quick change-outs during cleaning. To clean used diffusers, soak them in a bleach solution, chlorine solution, or vinegar to help remove organic material and disinfect the surface. After soaking, flushing or flowing compressed gas through the diffuser will help clear remaining buildup and restore performance.
- Watch our cleaning videos for more information.
- Q: I have very hard water — can diffusers still work effectively?
- A: Yes. Diffusers can operate in hard water environments; however, mineral deposits (such as calcium) may build up over time and reduce performance if not maintained. We recommend keeping a spare set of diffusers available for quick change-outs during routine cleaning. To remove calcium buildup, soak the diffuser in vinegar to dissolve mineral deposits. After soaking, flow compressed gas through the diffuser to help clear any remaining buildup and restore optimal performance.
- Watch our cleaning videos for more information
- Q: I damaged one of my o-rings, how do I replace it.?
- A: Remove the O-ring and purchase a size -016 Buna-N O-ring from your local hardware store. If you cannot find one local, order from McMaster Carr – Part# 9452K6. Reach out to our support team if you need more help. Support@o2nanotech.com
