The A-Series Platform is a versatile oxygen delivery system engineered to support a wide range of agricultural, horticultural, turf, livestock, water treatment, and industrial processing applications. Designed for operational flexibility, the A-Series integrates easily into existing infrastructure and provides a scalable, low-pressure oxygenation solution that improves water quality, biological performance, and overall system efficiency.
The platform can be configured with 275-gallon, 330-gallon, 500-gallon, or 1,000-gallon tank systems, allowing operators to scale oxygenated water production based on operational demand. This modular configuration enables seamless integration into fertigation systems, spray rigs, livestock water systems, pond remediation programs, and production or processing environments.
Price Coming Soon
*Buy 4 for $XXXX each and save 5%
*Buy 6 for $XXXX each and save 10%
*Buy 10 for $XXXX each and save 15%
A-Series Platform
The A-Series Platform is engineered to maximize oxygen transfer efficiency through high-flow, low-pressure operation and seamless integration with water systems, enabling elevated dissolved oxygen levels, improved process performance, and reduced energy consumption. By increasing dissolved oxygen availability and gas transfer efficiency, the A-Series improves the effectiveness of applied inputs, including nutrients, biological products, and crop protection materials. Elevated oxygen levels support stronger microbial activity within the irrigation water and root zone, promoting improved nutrient utilization efficiency, healthier root development, and more consistent plant growth. The result is a more biologically active and stable production system that supports improved crop health, growth performance, and yield potential.
A-Series Platform
- Unique Patent Pending Design – Full Self-Contained Oxygen Nanobubble System
- Outdoor Rated Oxygen Concentrator supplies 90-93% O2 at 10 LPM 20 psi
- Patent Pending Custom Class 2 Dryer System allows for continuous operation
- 1-month of 24/7 operations is equivalent to Qty 255 J Size Bottles
- Built in variable Speed Water Pump – 190 – 380 LPM
- ¾” Hose Water Inlet and Outlet with internal Float valve.
- Full Stainless Steel 316L Construction NBG
- Easy to remove Dual Titanium 100 nm Injectors
- Proven nanobubble production in excess of 400 million/ml
- Average size of 100nm-sized bubbles
- Low Noise / Quiet Operation with Low Power Usage – Standard Plug
- Wash Down Capable + Corrosion Resistant Components
- Outdoor rated System designed to operate Rain or Shine
- Low Power Usage – Standard Plug
- Wash Down Capable + Corrosion Resistant Components
- Capable of Continuous or Timer Controlled Operations
- Low Noise / Quiet Operation

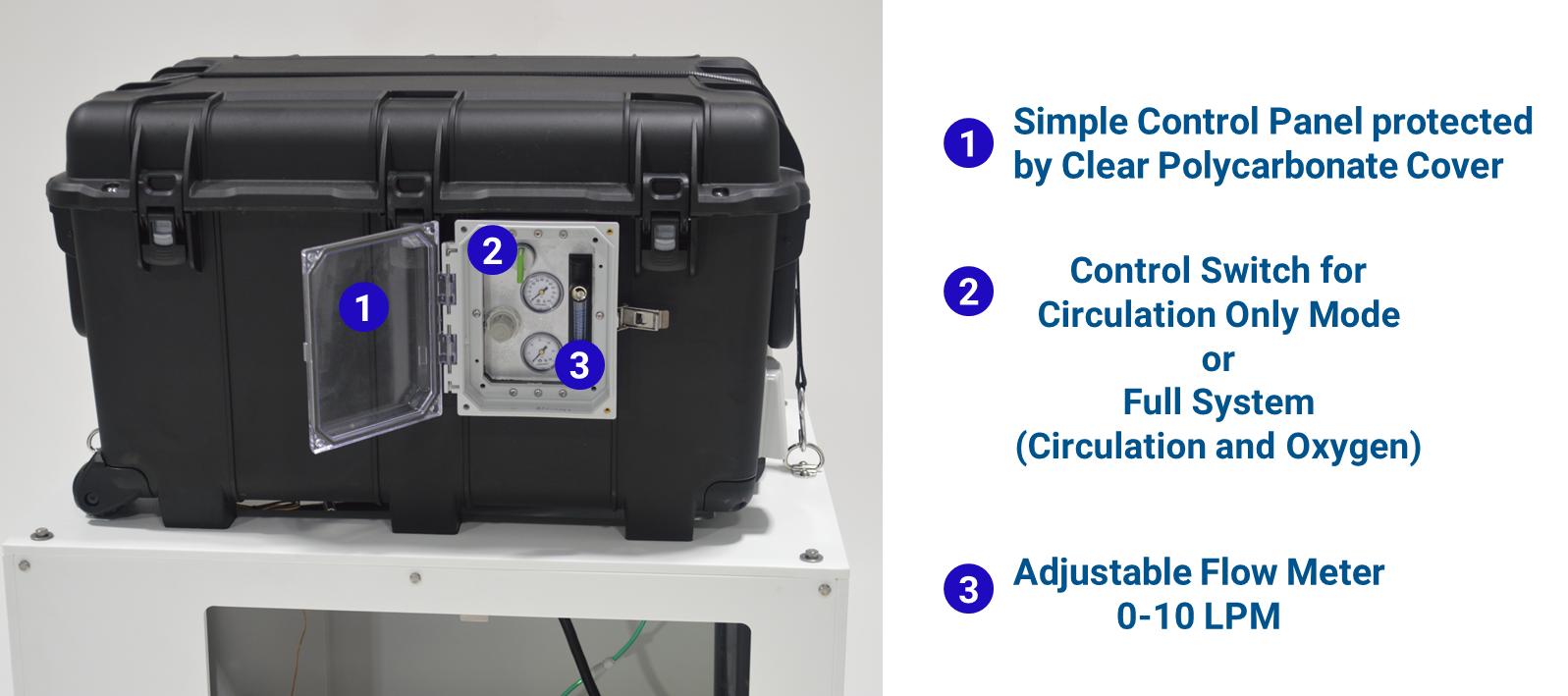

- Simple Control Panel protected by Clear Polycarbonate Cover.
- Integrated Pressure Gauges, Pressure Regulators and Adjustable Flow Meter 0-10 LPM.

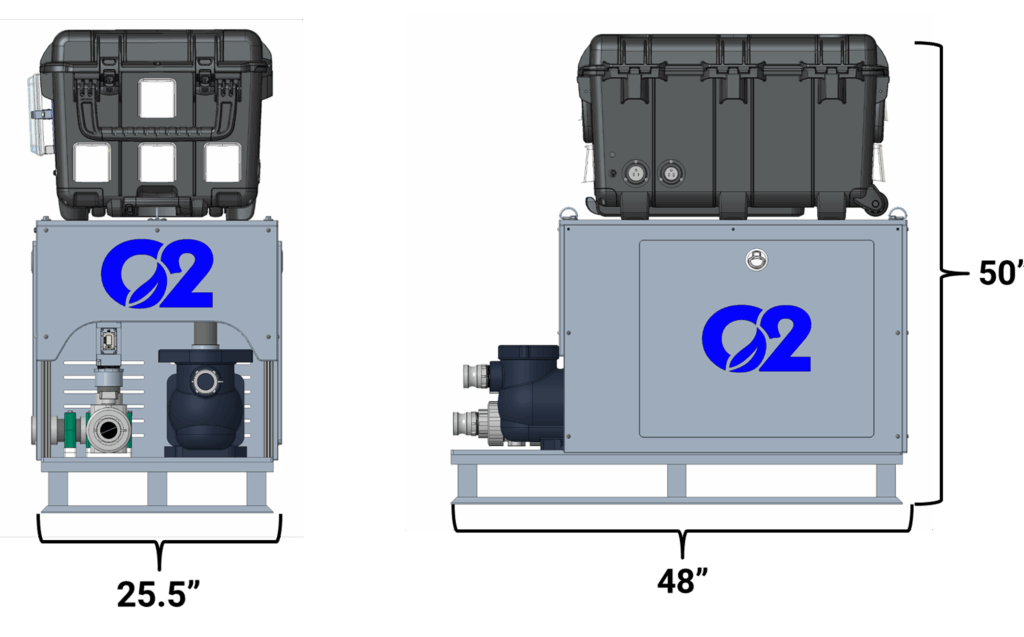

- Exterior Dimensions: 48” x 25.5” x 50”
- Optional Accessories:
- Valve Skid for easy switching between different tanks
- Remote Telemetry System – Oxygen Flow Rate, Water Flow Rate, Temperature, etc.
A-Series Platform
- Q: Can I remove the push to connect fittings and install a bard fitting or a flare fitting?
- A: Absolutely, titanium diffusers have a standard ¼” npt thread which will allow you to install any fitting of your choice with a matching thread. We recommend you use a soft jaw plier and only grip on the upper part of the diffuser where the O-ring is located. Remove the O-rings as required.
- Q: If I drop this diffuser on the ground, will it crack like ceramic units do?
- A: No, O2 Tech built these gas injectors out of titanium to prevent this failure. The material is very robust and can handle drops off tables, ladders and tanks. O2 Techs goal was to make these injectors last years.
- Q: Do diffusers require cleaning or maintenance?
- A: Over time, diffusers can accumulate organic buildup, which may reduce performance. Regular maintenance helps ensure optimal oxygen transfer and long-term reliability. We recommend keeping a spare set of diffusers on hand for quick change-outs during cleaning. To clean used diffusers, soak them in a bleach solution, chlorine solution, or vinegar to help remove organic material and disinfect the surface. After soaking, flushing or flowing compressed gas through the diffuser will help clear remaining buildup and restore performance.
- Watch our cleaning videos for more information.
- Q: I have very hard water — can diffusers still work effectively?
- A: Yes. Diffusers can operate in hard water environments; however, mineral deposits (such as calcium) may build up over time and reduce performance if not maintained. We recommend keeping a spare set of diffusers available for quick change-outs during routine cleaning. To remove calcium buildup, soak the diffuser in vinegar to dissolve mineral deposits. After soaking, flow compressed gas through the diffuser to help clear any remaining buildup and restore optimal performance.
- Watch our cleaning videos for more information
- Q: I damaged one of my o-rings, how do I replace it.?
- A: Remove the O-ring and purchase a size -016 Buna-N O-ring from your local hardware store. If you cannot find one local, order from McMaster Carr – Part# 9452K6. Reach out to our support team if you need more help. Support@o2nanotech.com
